LPLR & LPLRT

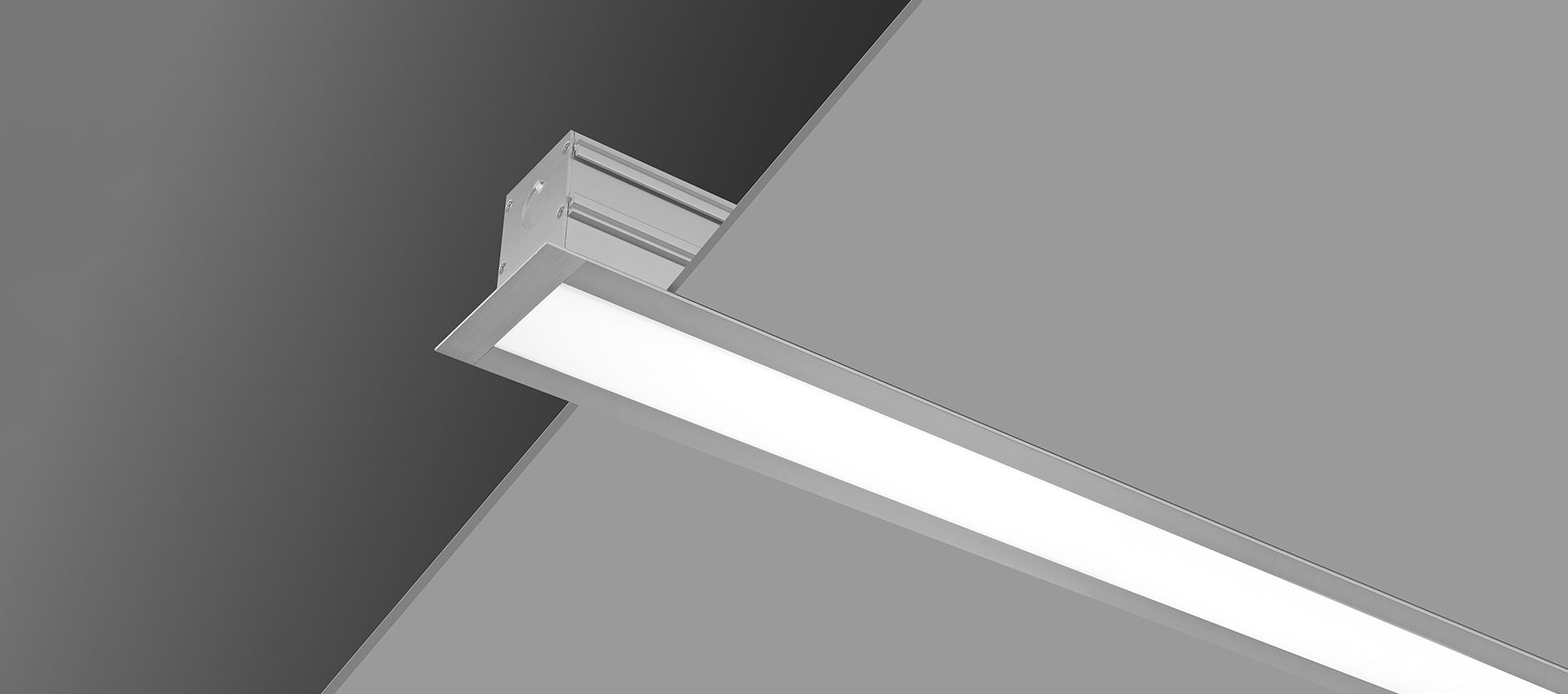

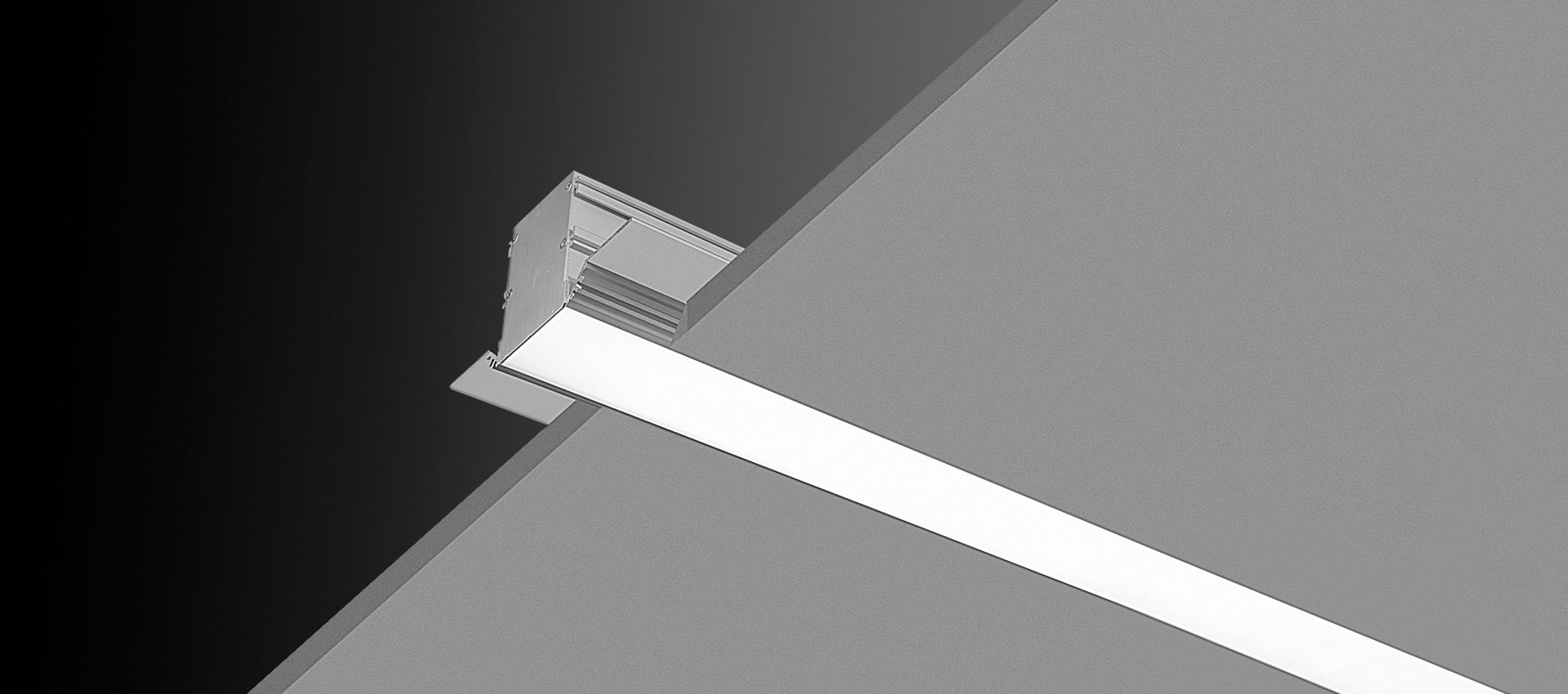

Lightplane Linear Recessed is a low-profile recessed slot light. The luminaire can be installed both vertically and horizontally to form continuous or individual rows.
The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.

DOWNLOAD SPEC SHEET

LPLR & LPLRT
LPLR & LPLRT
LPLR & LPLRT
LPLR & LPLRT
LPLR & LPLRT
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

166x83mm/96x83mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+
Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Built-in

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features
