FBH

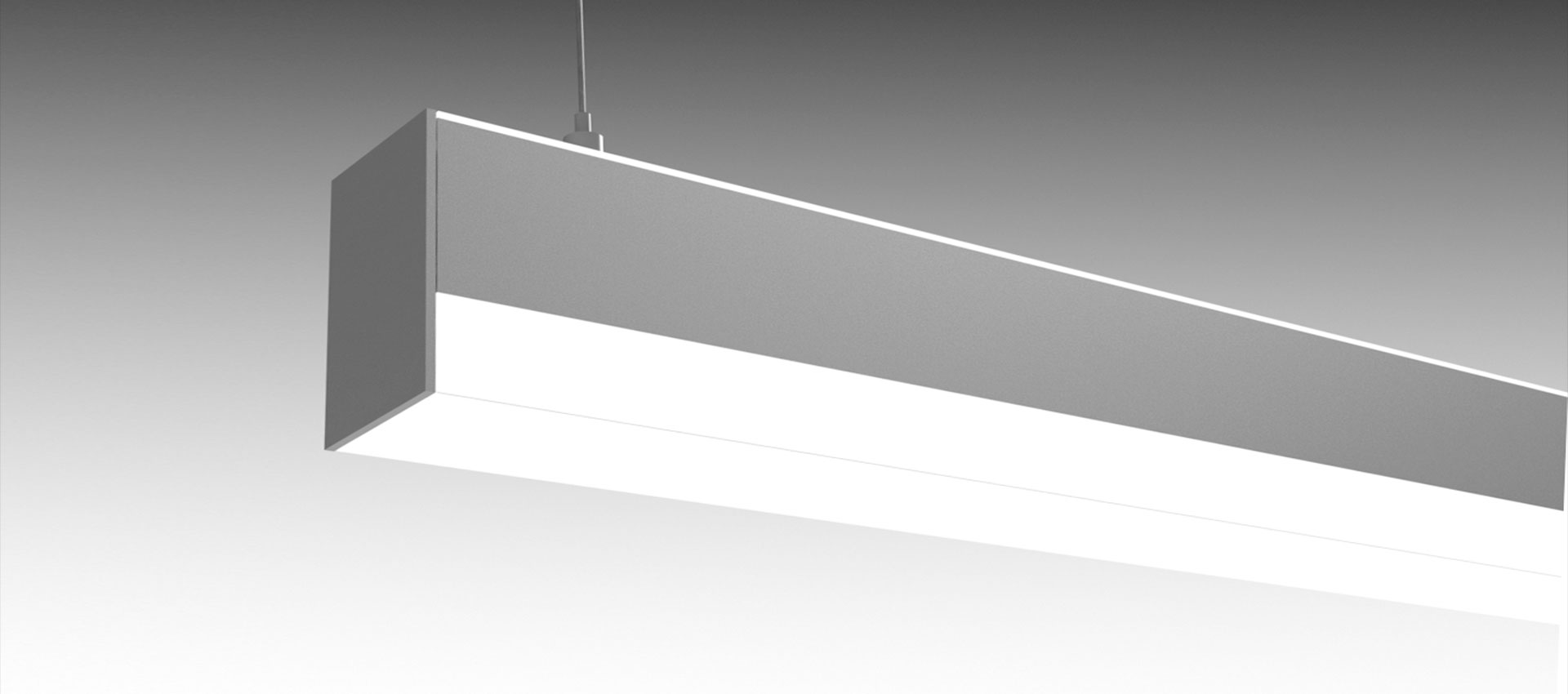

Five Bow H is a suspended direct-indirect, wall and ceiling luminaire.
With a cross section dimension of just 44mm, the Five Bow body houses a standard LED driver integral to the channel, creating a remarkably low-profile luminaire.

DOWNLOAD SPEC SHEET

FBH
FBH
FBH
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

44x74mm/44x98mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+ Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Built-in and remoted driver are available

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features

Icon for 吊灯-只下照
Icon for 吸顶灯
Icon for 壁灯-直照
