FBRC & FBRCB

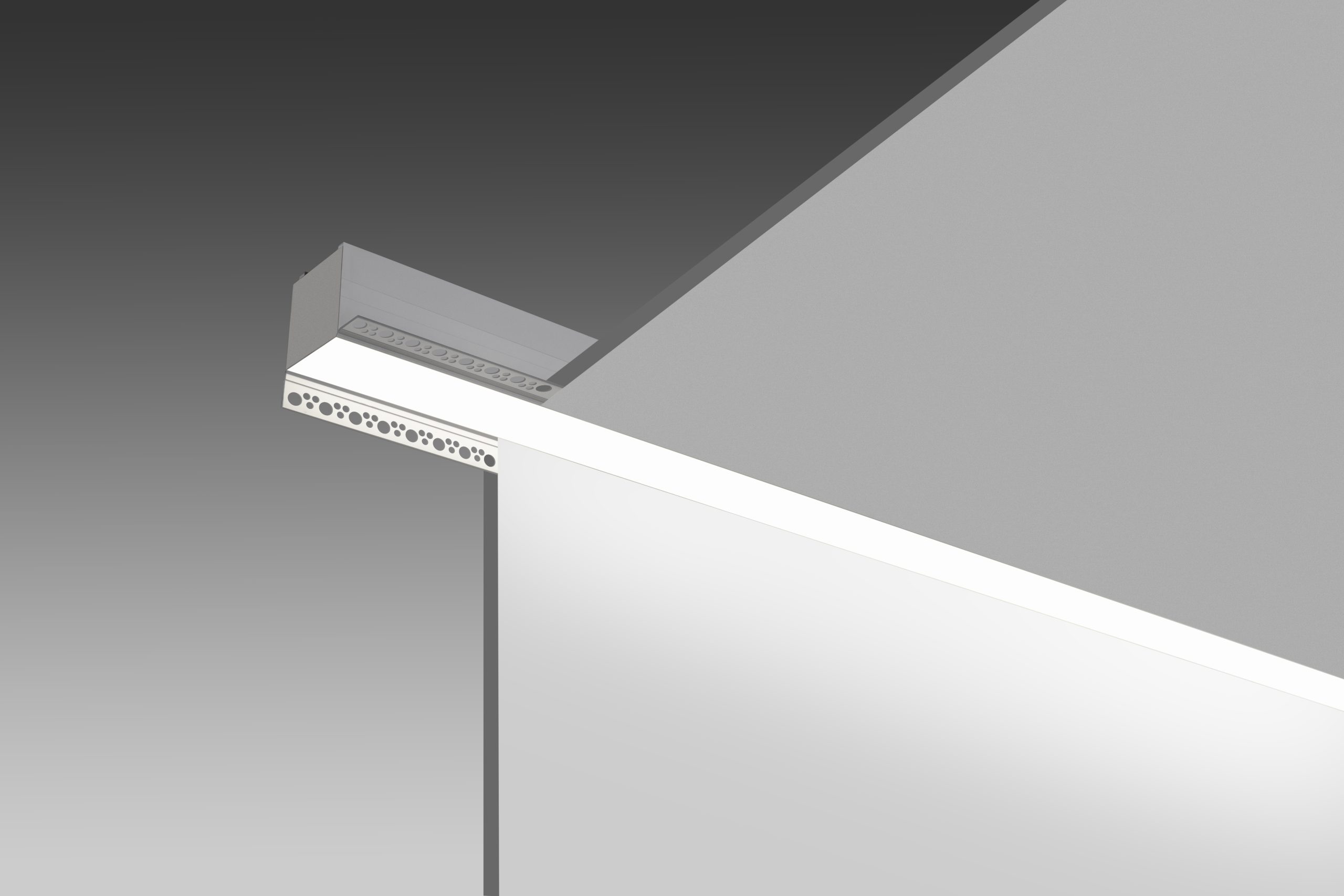

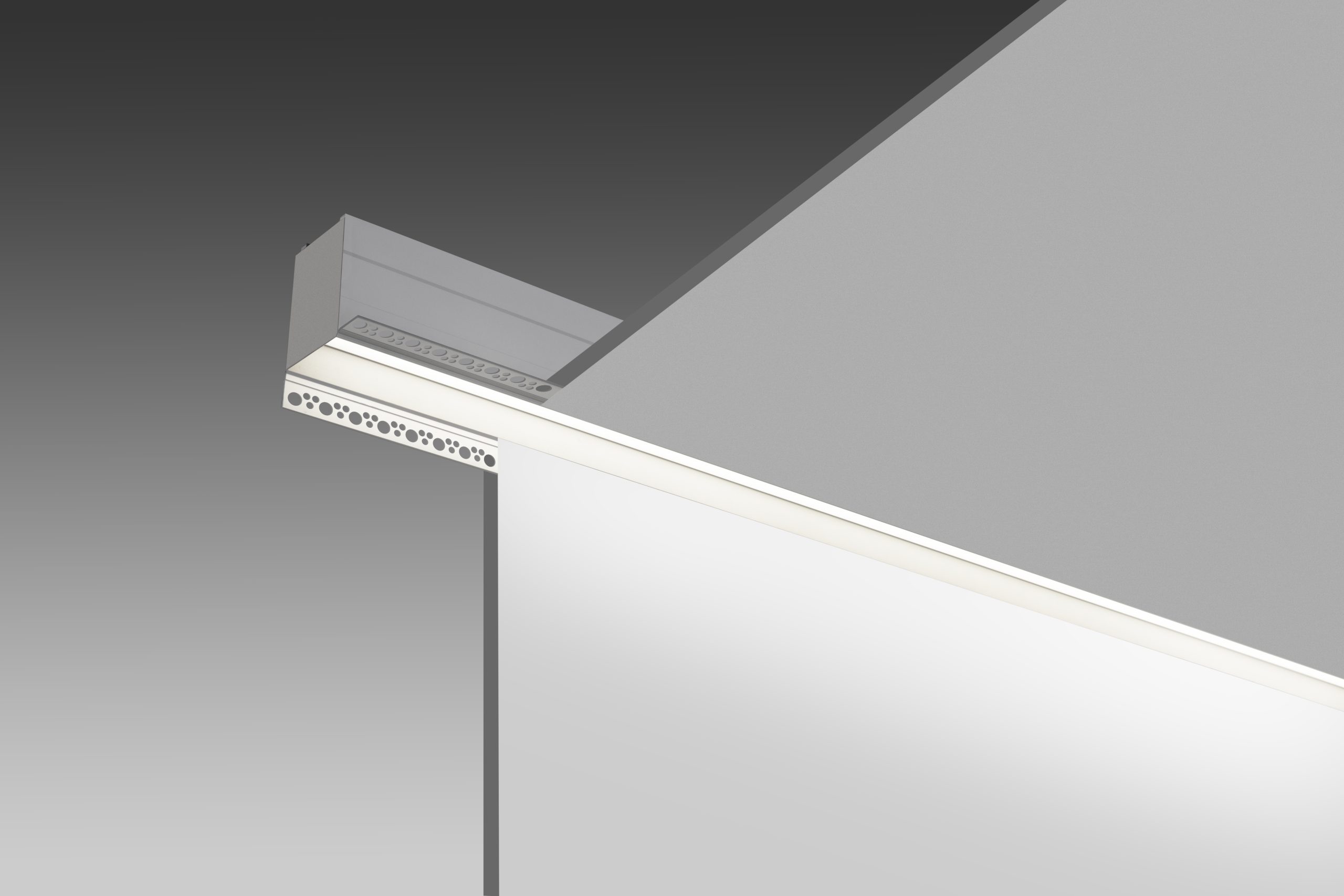

Five Bow Recessed Corner is trimless channel have two sizes at 69x70mm(FBRC) and 71x90mm(FBRCB).
Each size have two diffusers for optional. Wall washer application. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.

DOWNLOAD SPEC SHEET

FBRC & FBRCB
FBRC & FBRCB
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

69x70mm/71x90mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+ Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Remoted

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features
