HB

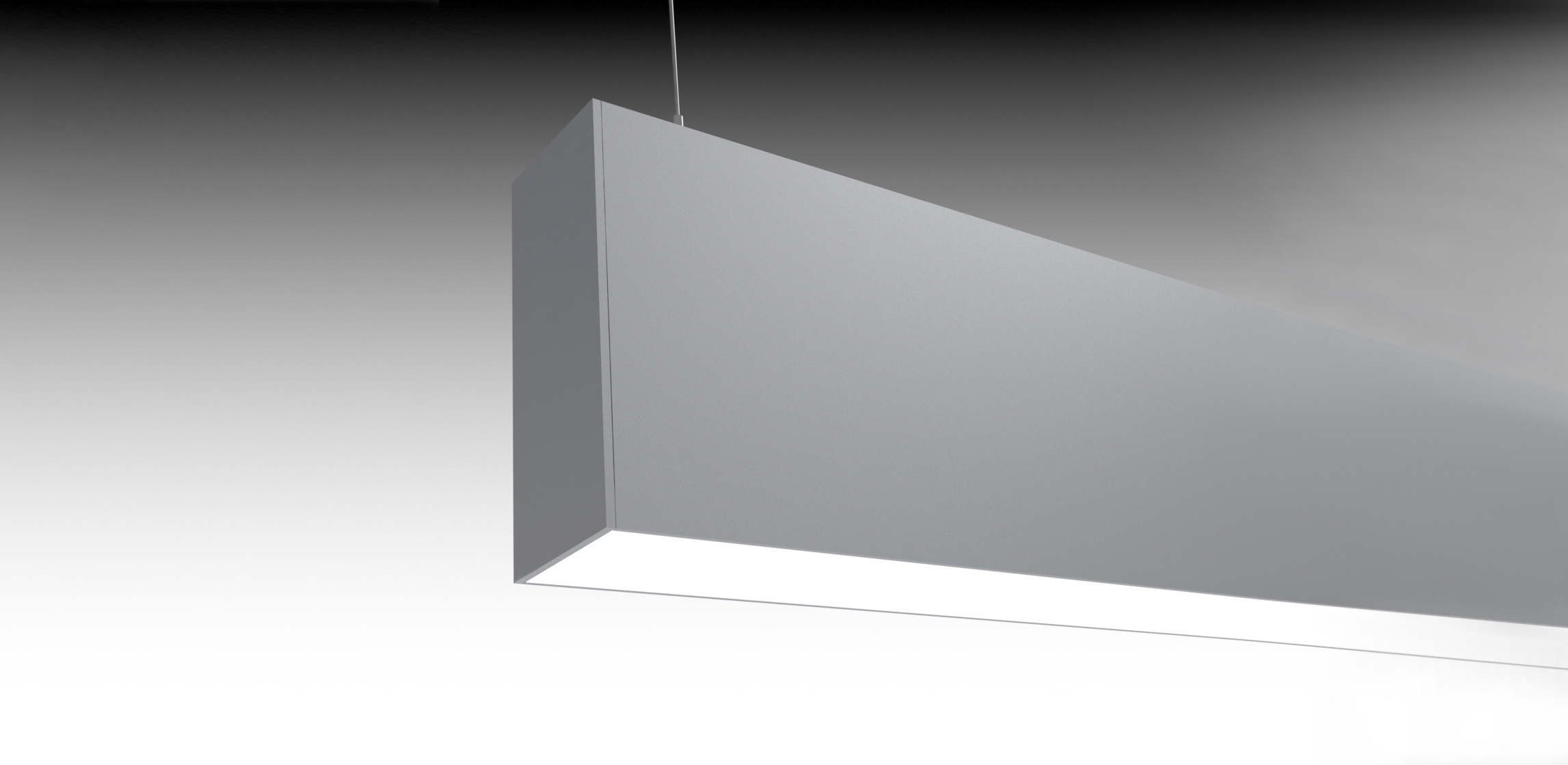

H Beam is a compact and streamlined, suspended or wall mount fixture.

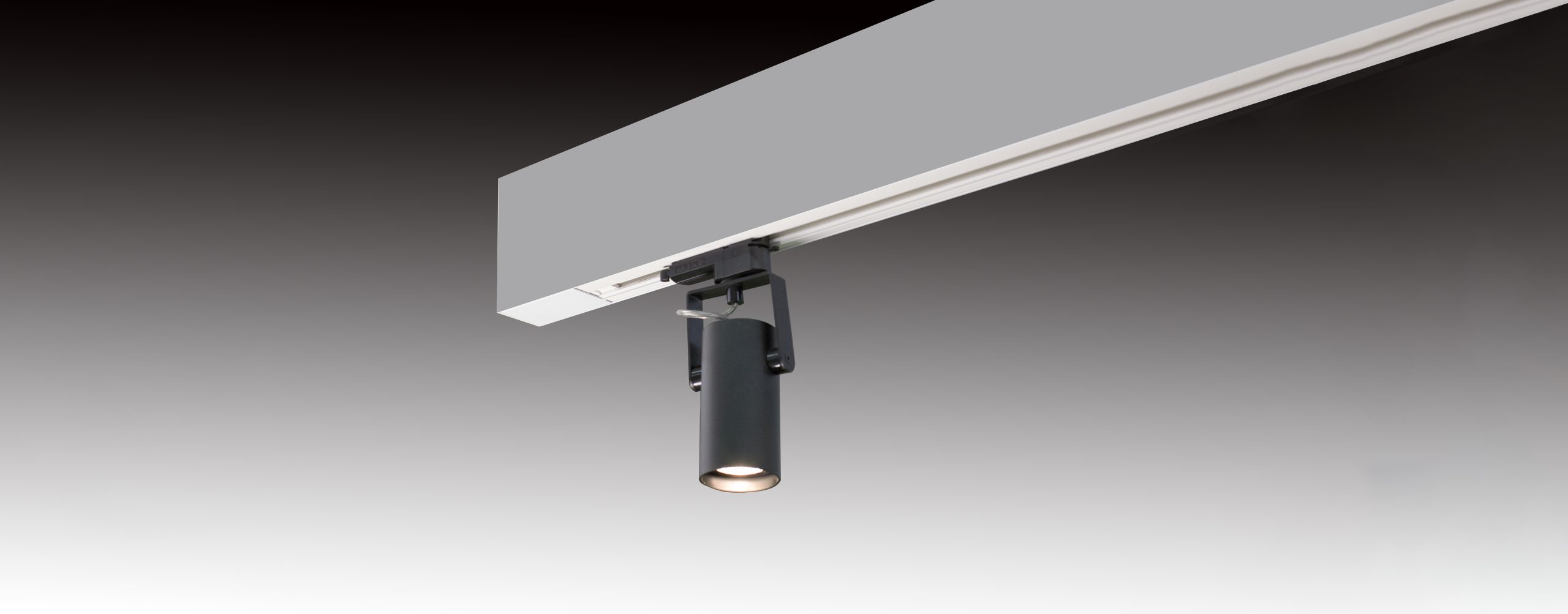

The extruded aluminium channel provides both direct and indirect illumination. Integral driver configuration with flush or drop lens. Individual or continuous row mounting. A low UGR option is available with a prismatic lens. Downlight spot available.

DOWNLOAD SPEC SHEET

HB
HB
HB
HB
HB
HB
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

63x150mm/63x176mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+
Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Built-in

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • IK08
  • IP20
  • rohs
  • CE
  • CB

Optics & Features

Icon for Feature
Icon for 吊灯-上下照
Icon for 吸顶灯
Icon for 壁灯-直照
