LPL1WGI

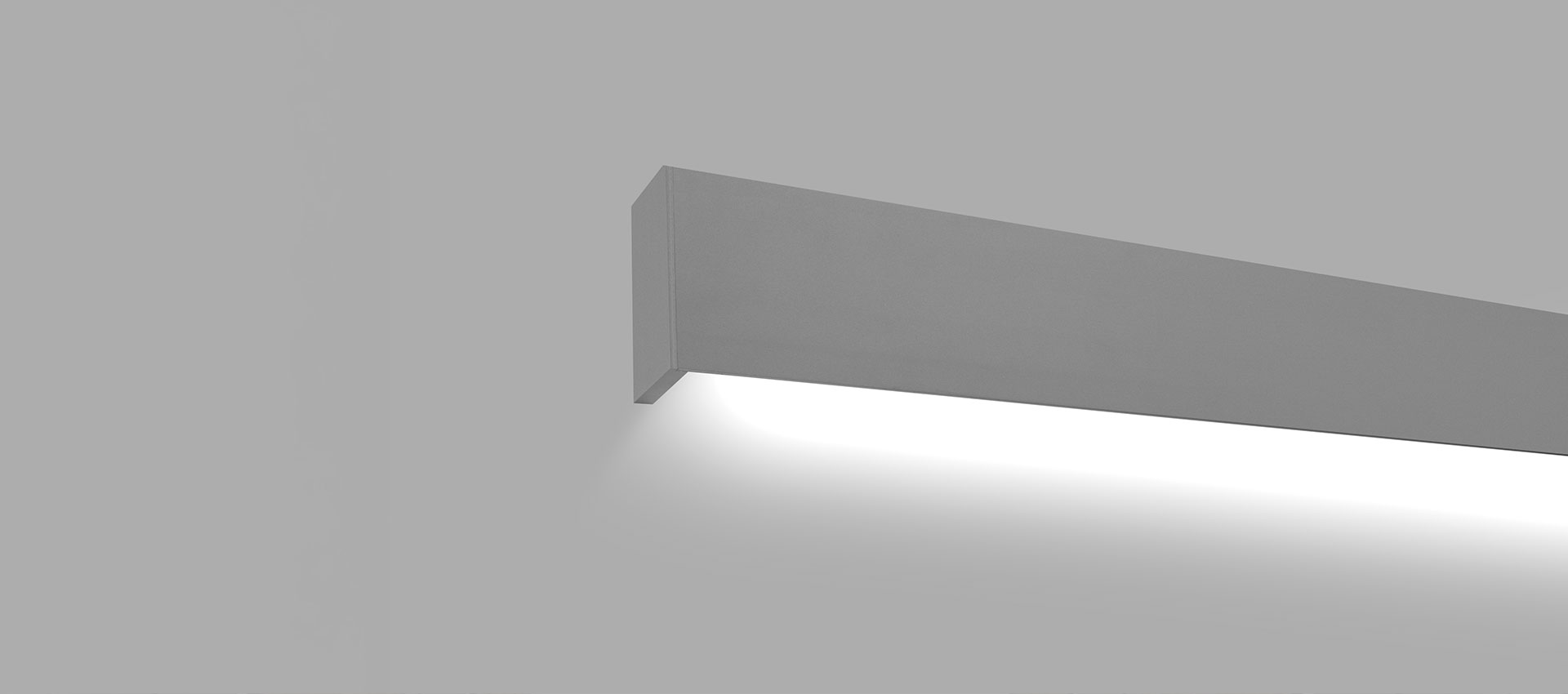

Lightplane 1 Wall Grazer is designed with a minimalist profile for wall-mount, single direction (indirect or direct) wall grazing applications.
The sleek design allows for integral driver. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. For dual direction distribution (indirect and direct), see Lightplane 1 Wall Grazer Indirect/Direct.

DOWNLOAD SPEC SHEET

LPL1WGI
LPL1WGI
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

42x75mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+
Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Built-in

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features
