LPLR1WWT

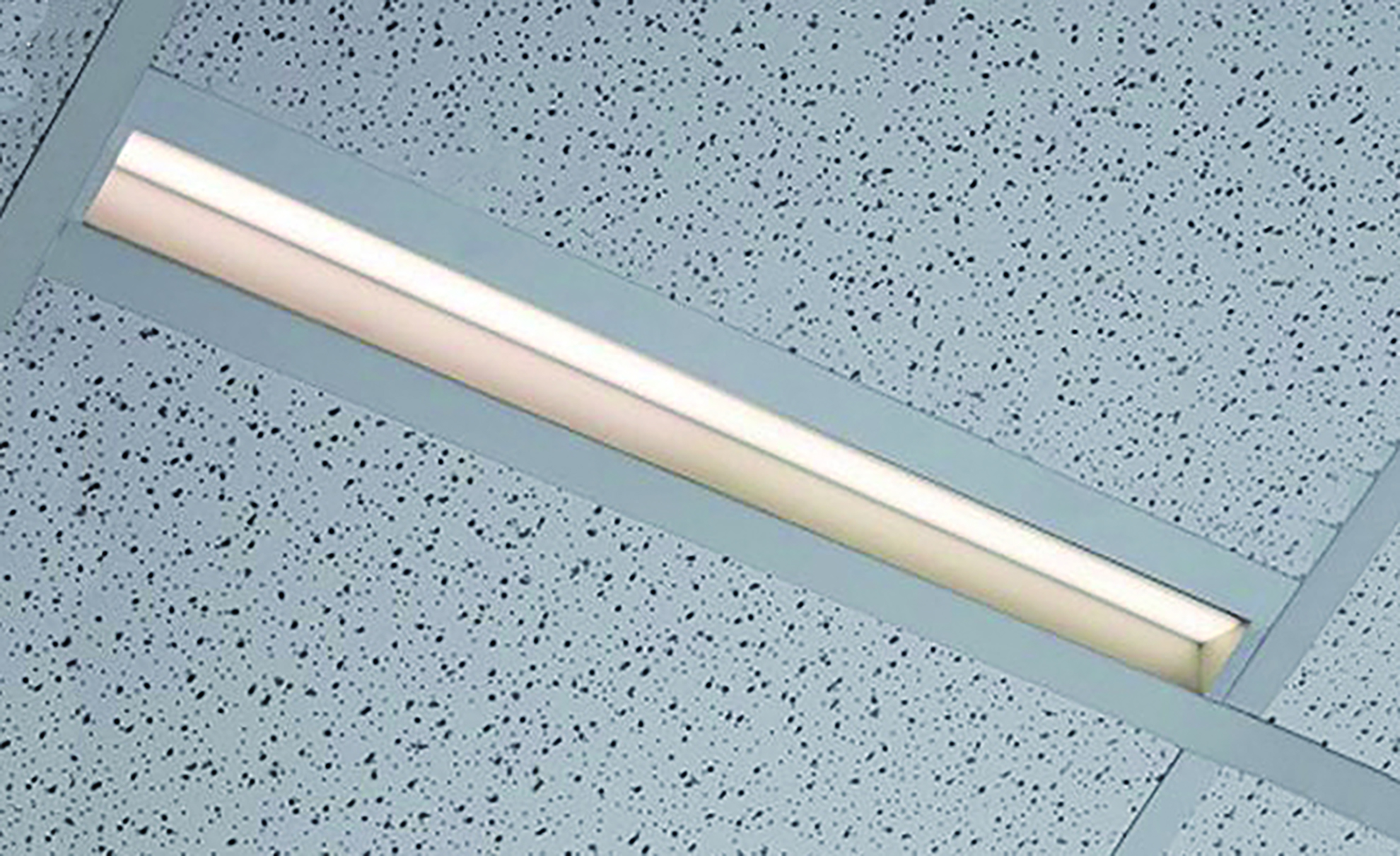

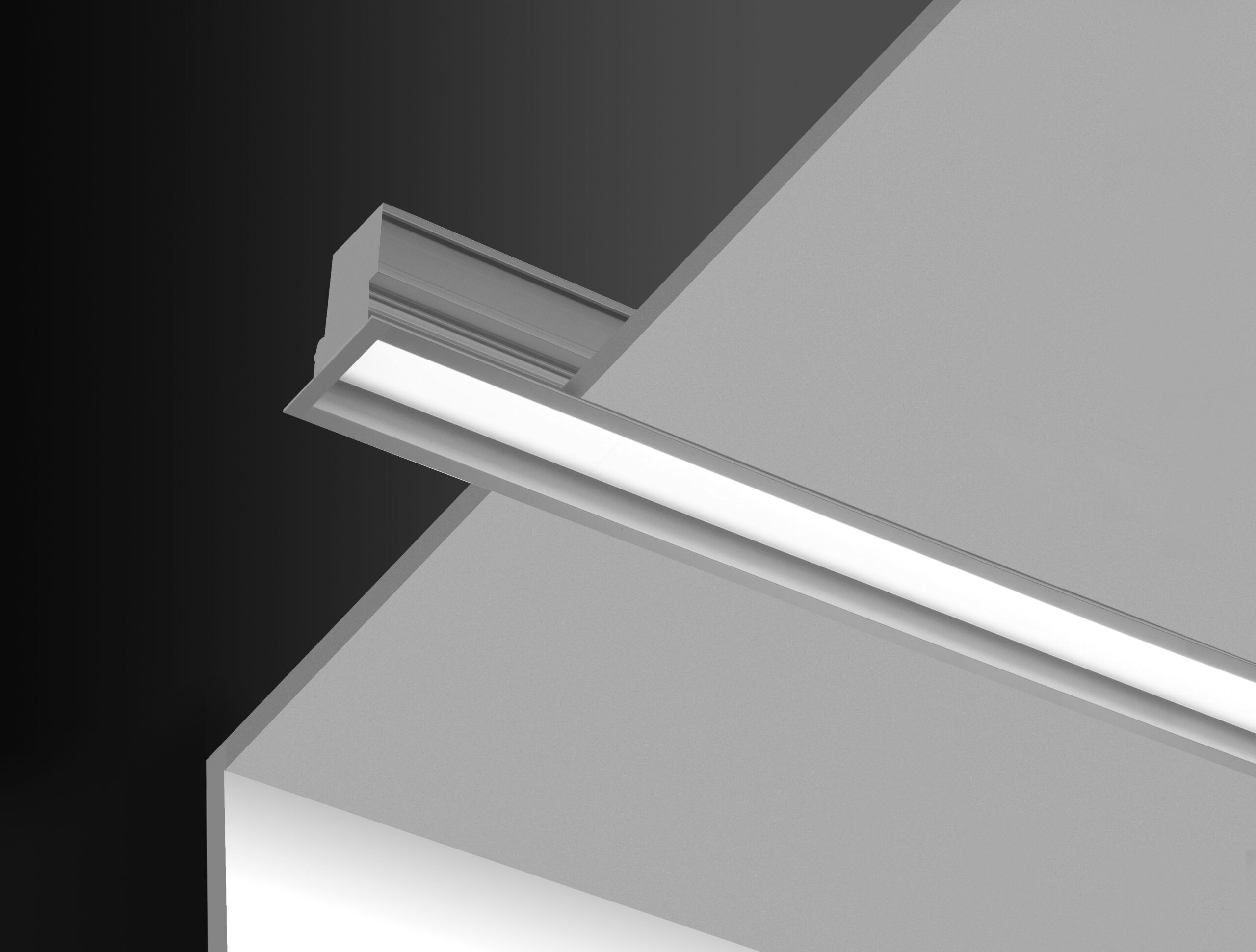

Lightplane 1 Wall Washer Recessed Trim (LPLR1WWT) is a small recessed slot light used for wall washing.
The luminaire can be installed both vertically and horizontally to form continuous or individual rows. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.

DOWNLOAD SPEC SHEET

LPLR1WWT
LPLR1WWT
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

58x57mm

BODY

Aluminum

LENS

Arcylic, PC

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+ Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Remoted

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20
  • IK08

Optics & Features
