LPR3

Lightplane Round 3 is a highly efficacious LED luminaire with an integrated driver that delivers up to 90lm/w.

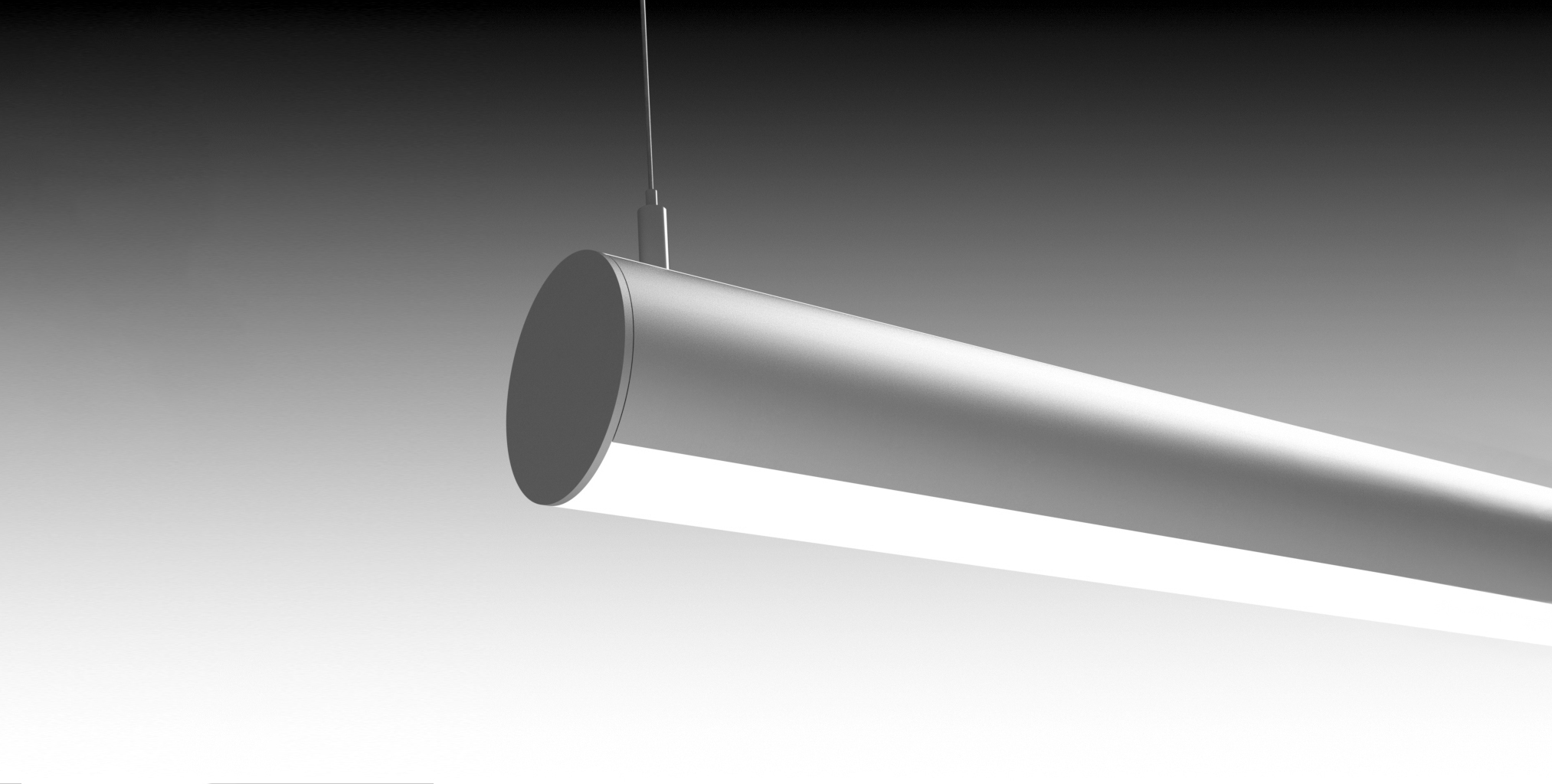

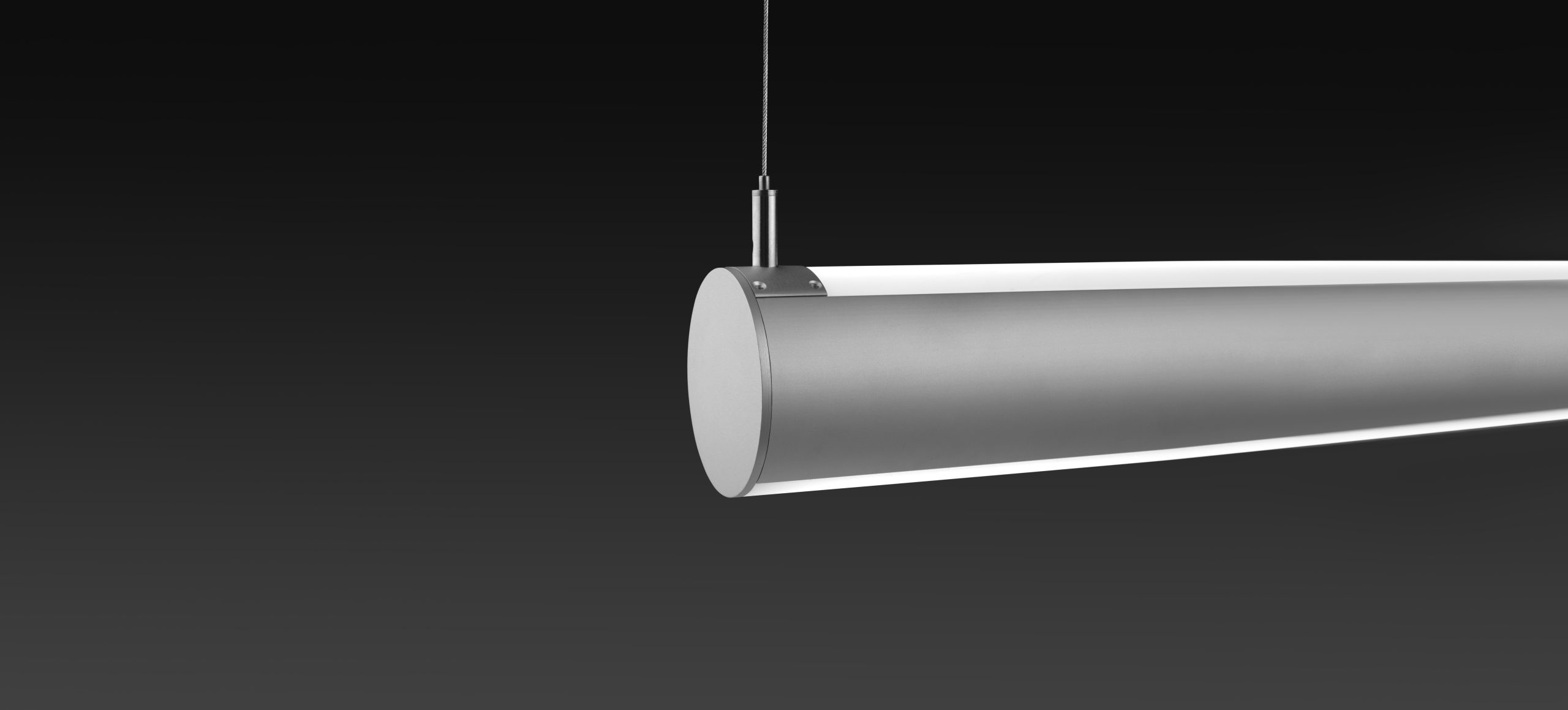

From its 77mm diameter channel, Lightplane Round 3 provides either direct, indirect or indirect/direct Illumination. When specified as an indirect/direct luminaire, a dual circuit option allows the uplight and downlight components to be controlled separately. Individual or continuous row-mounting in suspended or wall configurations.

DOWNLOAD SPEC SHEET

LPR3
LPR3
LPR3
LPR3
LPR3
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

ф77mm

BODY

Aluminum

LENS

Arcylic

FINISH

Black, White, Silver, RAL

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+
Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Remoted

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP20

Optics & Features

Icon for 吊灯-只下照
Icon for 吊灯-只上照
Icon for 吊灯-上下照
Icon for 吸顶灯
Icon for 壁灯-直照
