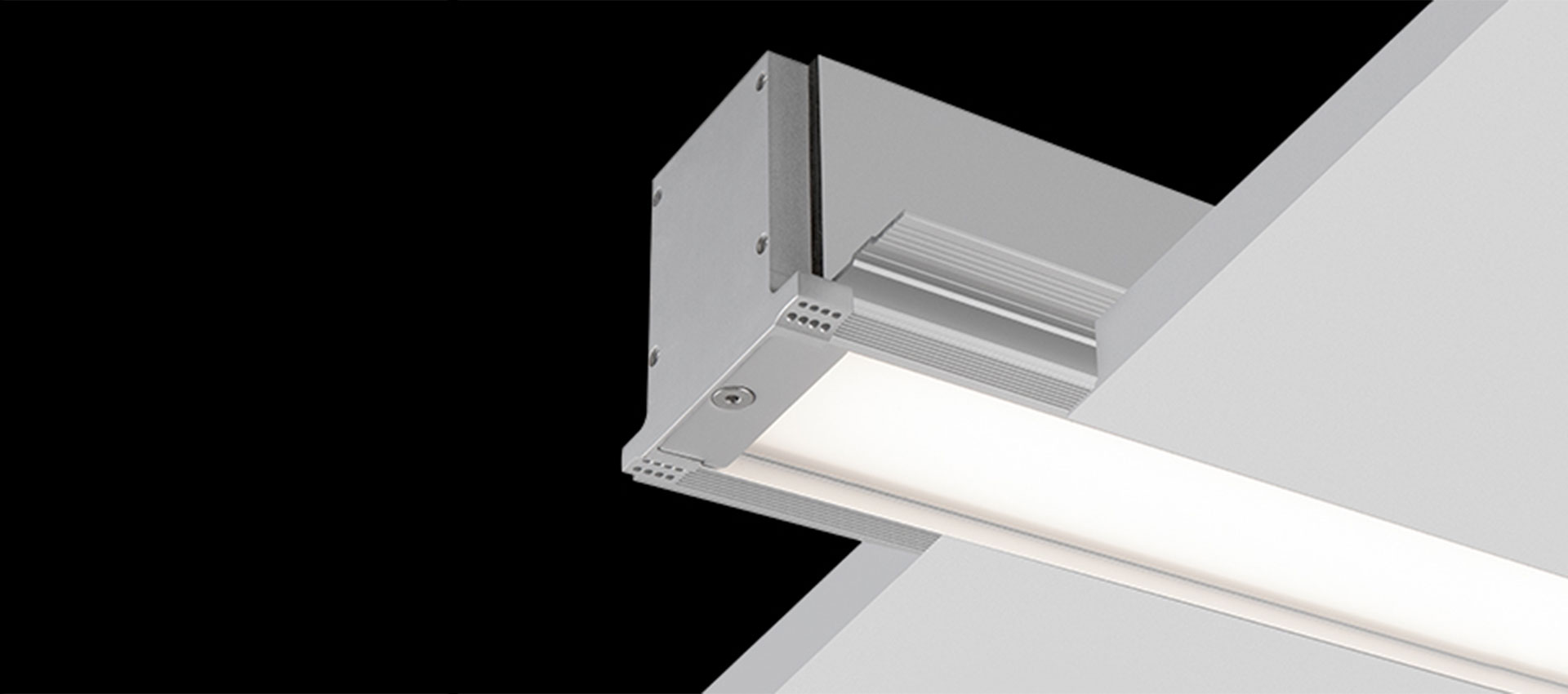

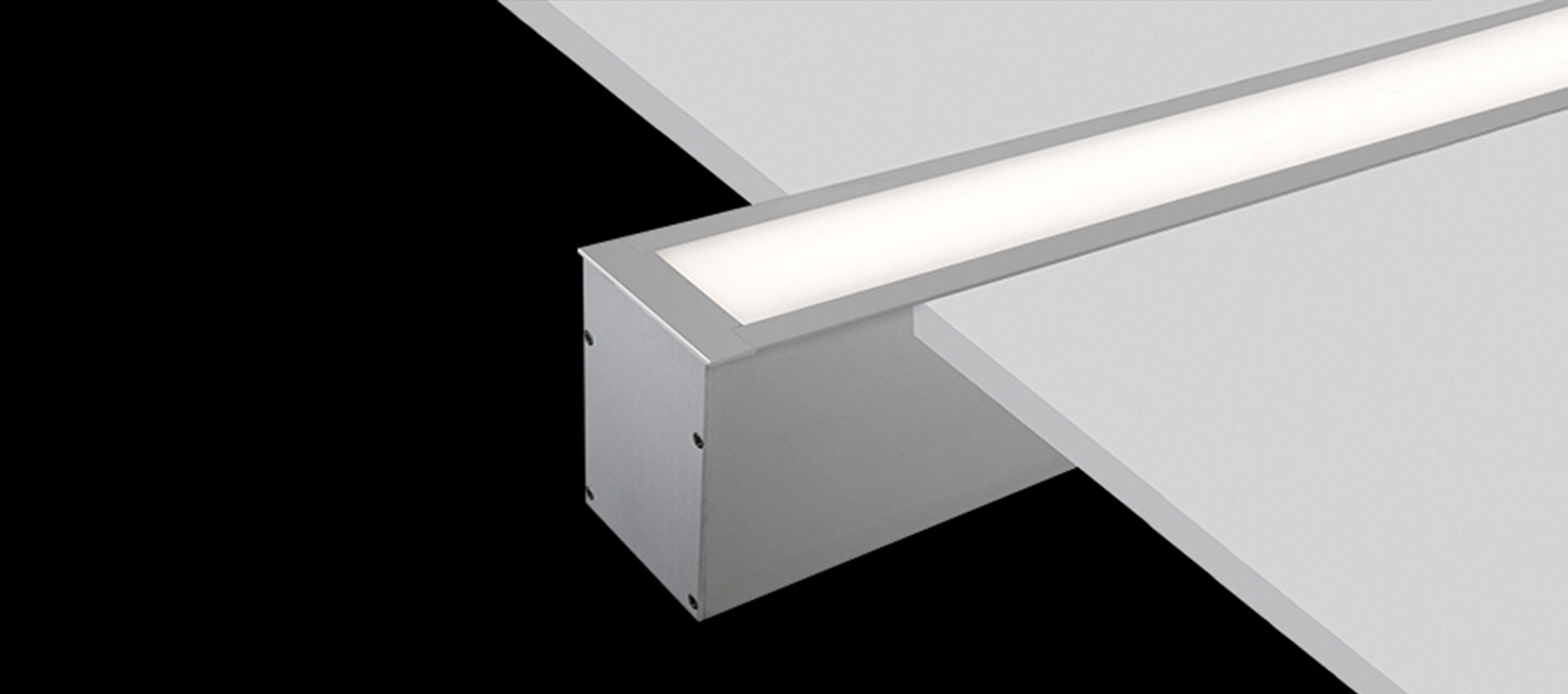

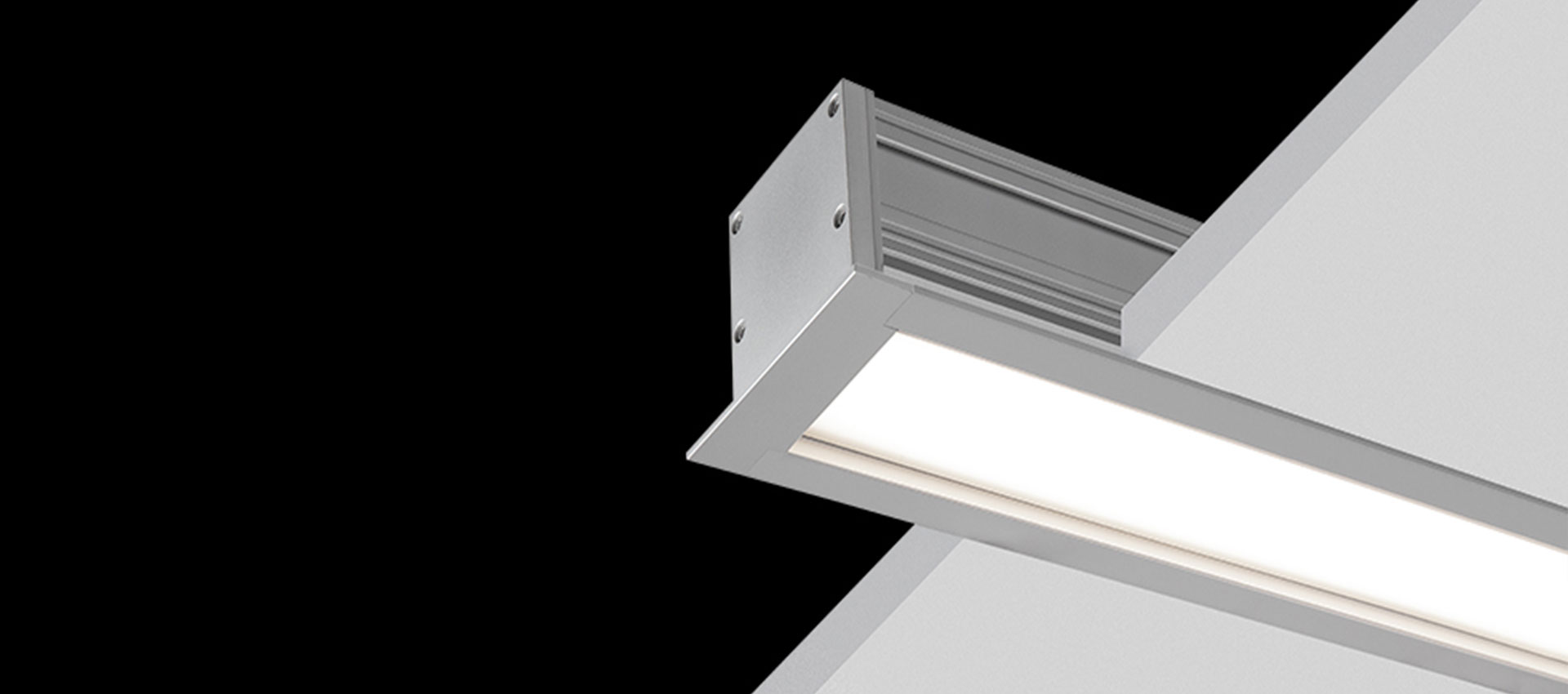

IPLR2.5 & IPLR2.5T

IPLR2.5&IPLR2.5T is an IP66 rated recessed linear luminaire.
100% recyclable, extruded architectural grade T6063 aluminum.
This fixture can be install on the wall or ceiling with standard frosted acrylic lens ,also ,it can be specially install in the floor with thickness PMMA lens.

DOWNLOAD SPEC SHEET

IPLR2.5 & IPLR2.5T
IPLR2.5 & IPLR2.5T
IPLR2.5 & IPLR2.5T
IPLR2.5 & IPLR2.5T
Imperial
Imperial Metric

Downloads

Tech Specs

SIZE

IPLR2.5：91x135mm IPLR2.5T ：93x77mm

BODY

Aluminum

LENS

Arcylic, PC

IP RATE

IP67

LED

Standard CCT: 3000K, 3500K, 4000K, CRI90+ Other option: 2700K, 5000K, 5700K, 6500K, RGB, TUNE(2700K-6500K). Contact factory for details.

DRIVER

Built-in

DIMMING

1-10V / 0-10V dimming, dali dimming, traic dimming. Contact factory for other options.

OPTIONAL ADD-ONS

1.5 hour emergency kit, PIR sensor.

Approvals

  • ETL-cut
  • CB
  • CE
  • rohs
  • IP67
  • IK08

Optics & Features
